18i20 is the studio hub for engineers who need serious I/O. Whether you’re recording drums, a live session, or racks of hardware synths, you’ve got everything you need with eight of our finest ultra-low-noise mic preamps, plus line, instrument, MIDI, S/PDIF, and ADAT connections. With 26 inputs and 26 outputs, you’re ready for whatever your session demands.
Key Features
- Eight ultra-low-noise mic/line preamps

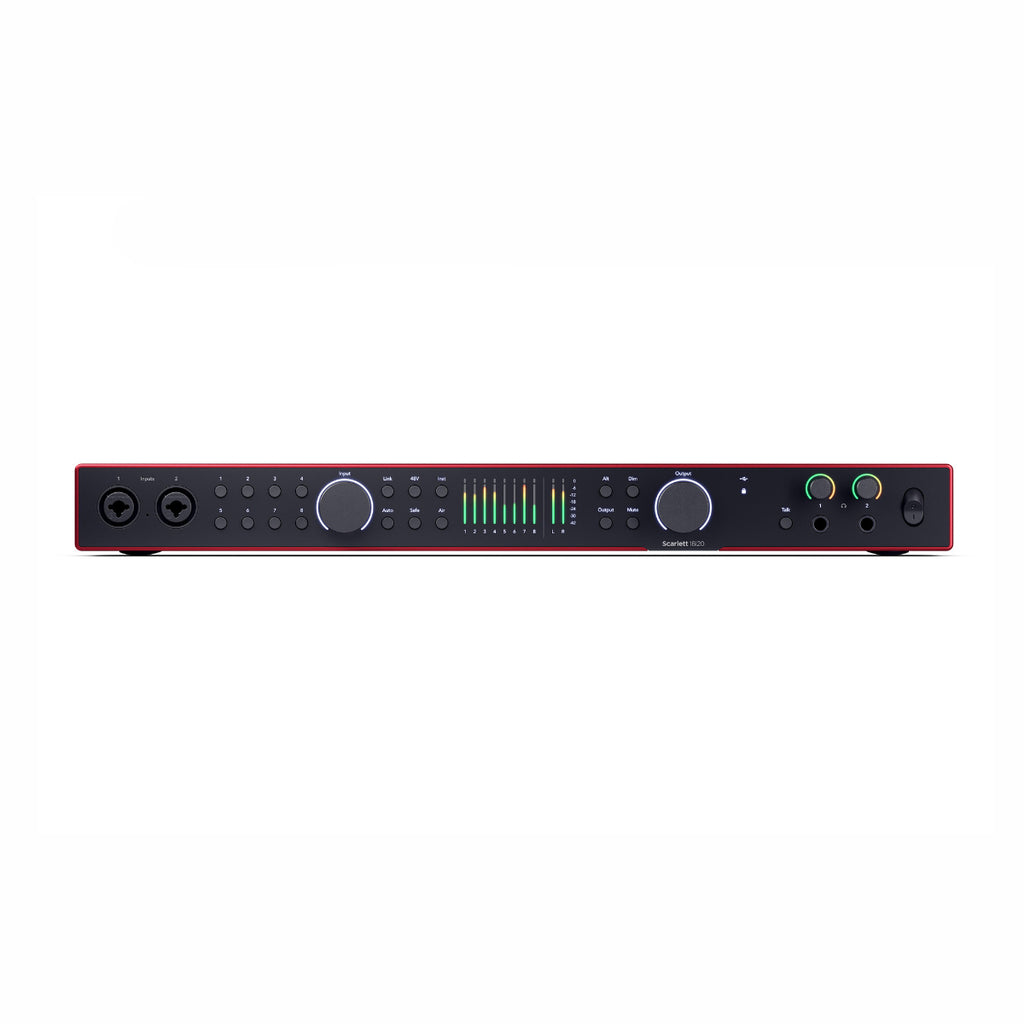

- Two front-panel mic/line and instrument preamps
- Two Air preamp modes for classic console sound
- Clip Safe and Auto Gain modes
- 10 line outputs inc. alt speaker switching
- Up to 16 channels of ADAT I/O
- S/PDIF, MIDI, and Word Clock
- Includes Hitmaker Expansion and DAW software bundle
Specifications
Overview
-
Number of Microphone Preamps8
-
Phantom PowerYes (Independent)
-
Instrument Inputs2
-
Line Inputs8
-
Air ModeYes
-
Auto GainYes
-
Clip SafeYes
-
Line Outputs10
-
Headphone Outputs2
-
ADAT Inputs2 (16 channels at 44.1/48kHz and up to 8 channels at 96kHz)
-
ADAT Outputs2 (16 channels at 44.1/48kHz and up to 8 channels at 96kHz)
-
SPDIF Inputs1
-
SPDIF Outputs1
-
MIDI Inputs1
-
MIDI Outputs1
-
TalkbackYes
-
LoopbackYes
-
ConnectivityUSB Type-C
-
ProtocolUSB 2.0
-

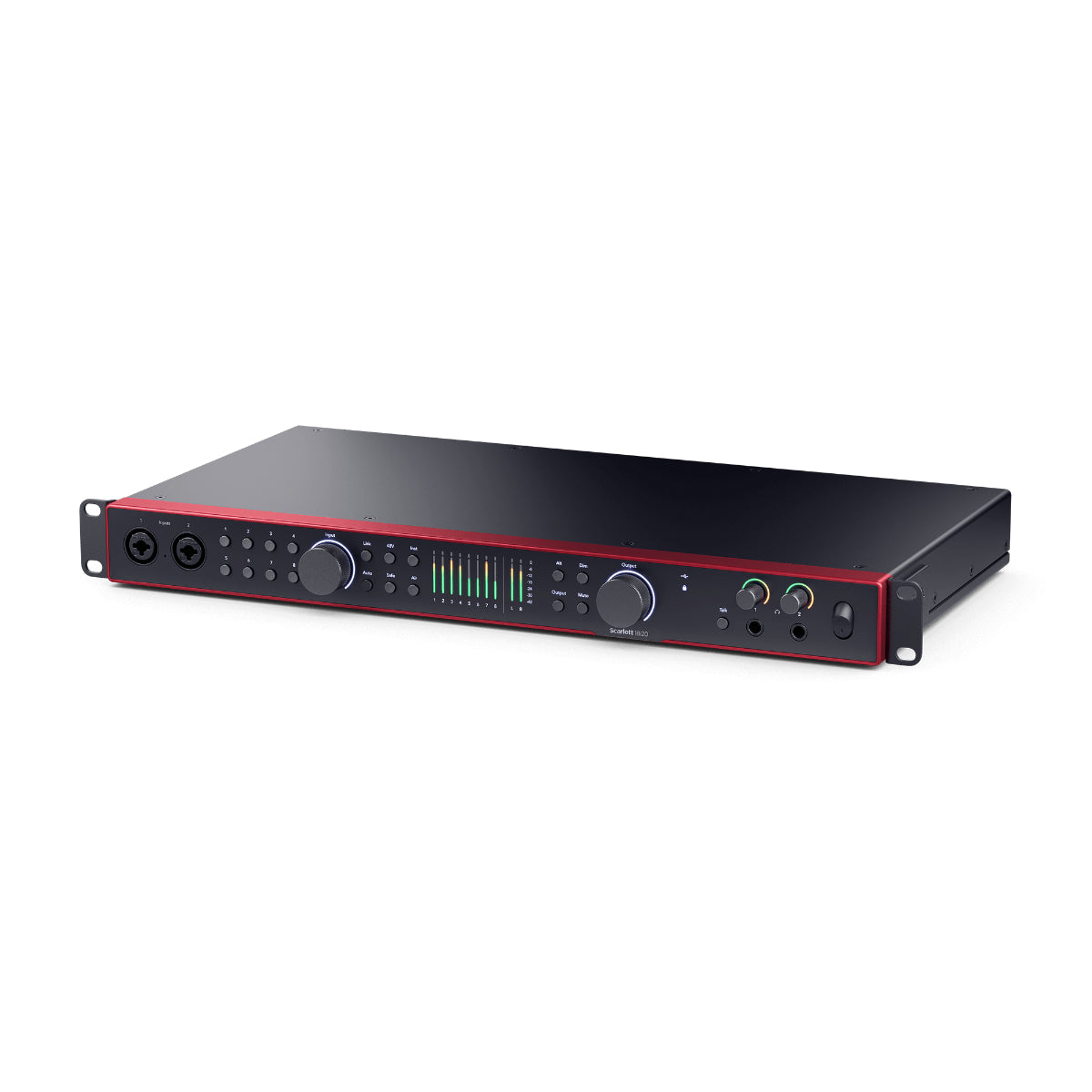

Form FactorDesktop / Rack Mountable (1U)
-
Simultaneous I/O26 x 26
-
A/D Resolution24-bit/192 kHz
-
Bus PoweredNo
Dimensions
-
Height46.55mm
-
Width442mm
-
Depth259.73mm
-
Weight3.304kg
Supported sample rates
- 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Microphone inputs
-
Frequency Response20-20kHz ± 0.06dB
-
Dynamic Range116dB (A-Weighted)
-
THD+N-100dB @ 8dB gain
-
Noise EIN-127dBu (A-Weighted)
-
Maximum Input Level16dBu
-
Gain Range69dB
-
Impedance3kΩ
Variable Line inputs
-
Frequency Response20-20kHz ± 0.05dB
-
Dynamic Range115.5dB (A-Weighted)
-
THD+N-100dB @ 8dB gain
-
Maximum Input Level22dBu
-
Gain Range69dB
-
Impedance24kΩ
Instrument inputs
-
Frequency Response20-20kHz ± 0.05dB
-
Dynamic Range113dB (A-Weighted)
-
THD+N-80dB @ 8dB gain
-
Maximum Input Level12dBu
-
Gain Range62dB
-
Impedance1MΩ
Line outputs (Balanced)
-
Frequency Response20-20kHz ± 0.02dB
-
Dynamic Range122dB (A-Weighted)
-
THD+N-112dB
-
Maximum Output Level16dBu
-
Impedance200Ω
Headphone outputs
-
Frequency Response20-20kHz ± 0.1dB @ 33Ω / 300Ω
-
Dynamic Range112dB @ 33Ω
116dB @ 300Ω
-
THD+N-100dB @ 33Ω (Minimum)
-110dB @ 300Ω (Minimum)
-
Maximum Output Level5dBu into 33Ω
11dBu into 300Ω
-
Maximum Output Power57mW into 33Ω
27mW into 300Ω
-
Impedance11Ω
Analogue to Digital Converter
-
THD+N-110dB
-
Dynamic Range120dB
Digital to Analogue Converter
-
THD+N-115dB
-
Dynamic Range130dB (A-Weighted)
Compatibility
-
WindowsIntel, AMD, and Arm64 processors supported
-
macOSApple Silicon and Intel processors supported
What's in the box
- Scarlett 18i20 audio interface

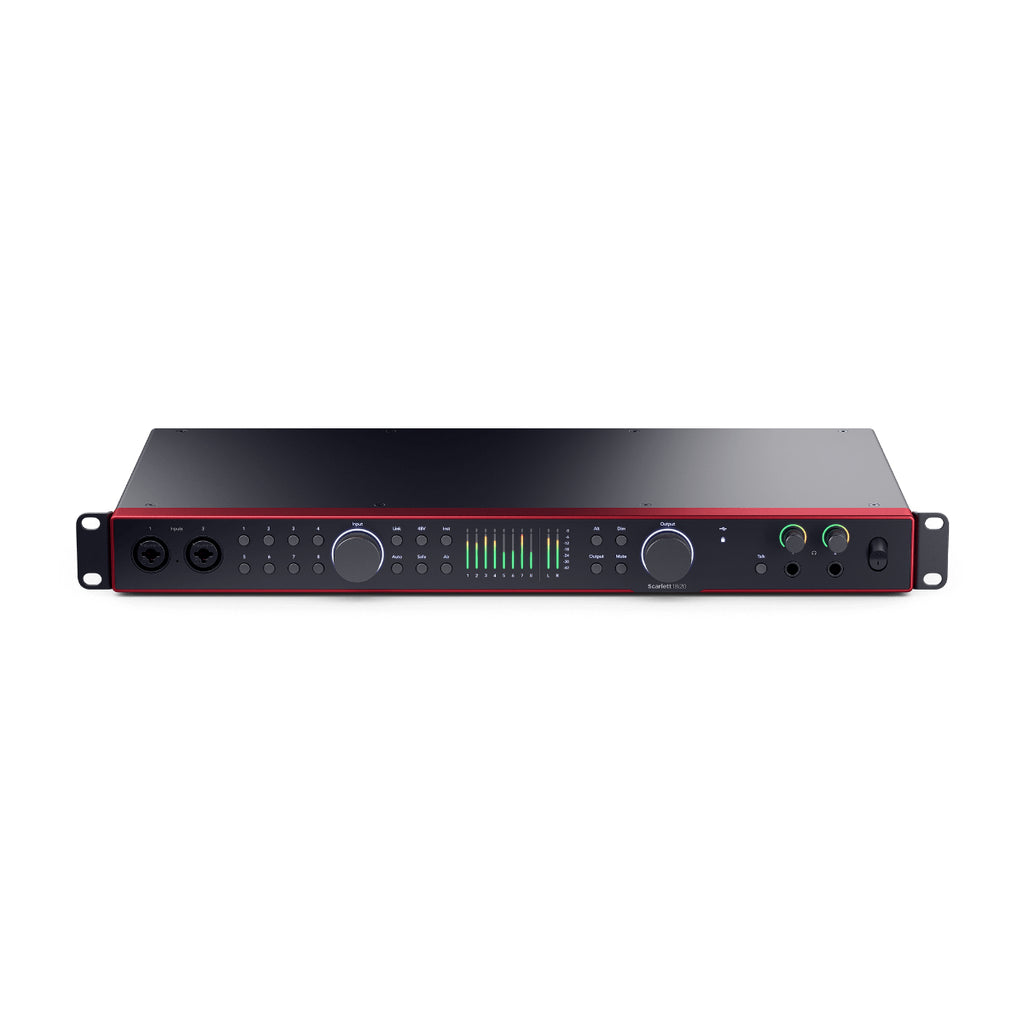

- Rack Ears
- 1.5m USB-C to USB-C cable
- USB-C to USB-A adaptor
- IEC power cable
