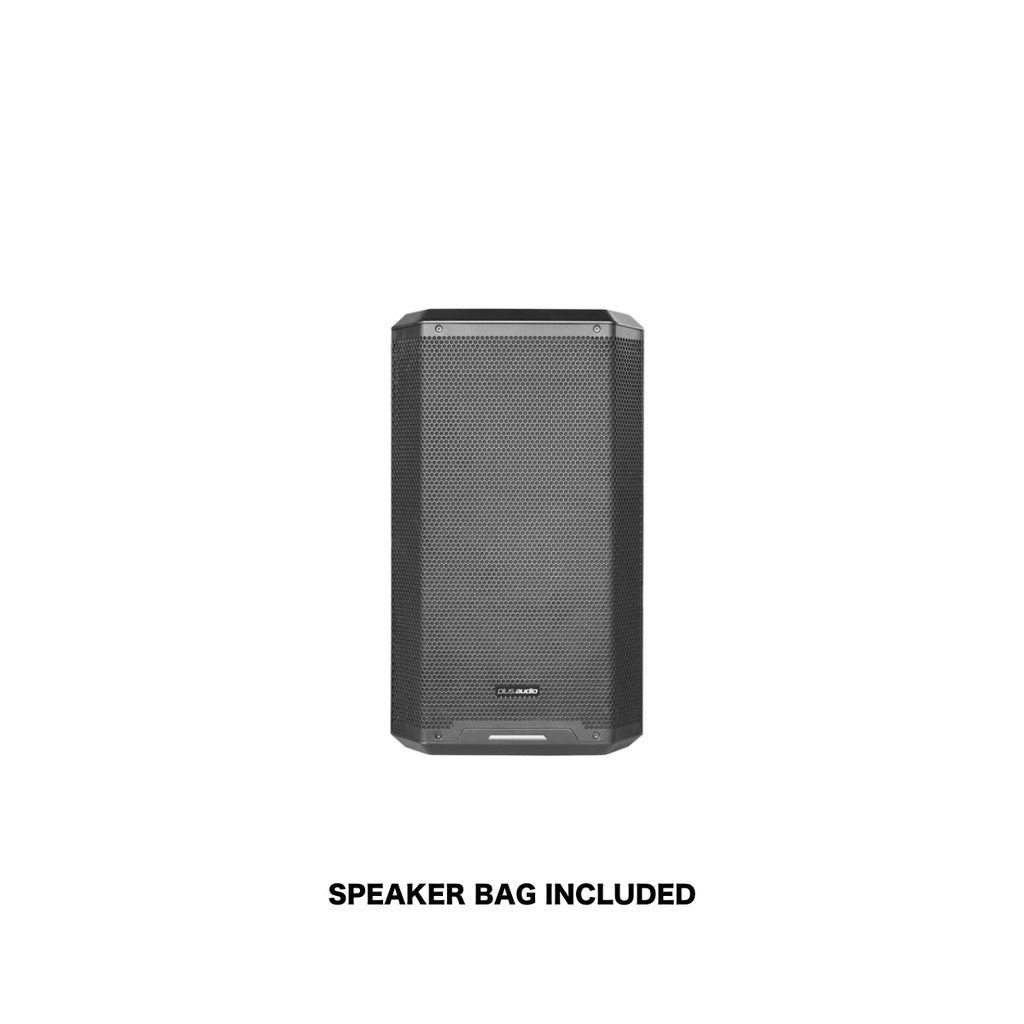

The Plus Audio MPS12A is a high-performance multipurpose point source loudspeaker, designed for versatile applications where clarity and durability are paramount. Ideal for live sound, installations, and mobile use, it features a sleek, injection-moulded cabinet that enhances rigidity and strength by 20%, ensuring durability and consistent performance.
Key Features:
- Powerful Output: With a peak power of 4000W, the MPS12A delivers robust audio performance, making it suitable for a range of demanding environments.
- Advanced Driver Technology: Equipped with a high polymer diaphragm compression driver, it offers superior high-frequency clarity and transparency compared to traditional titanium diaphragm tweeters.
- Flexible Connectivity: Includes Bluetooth audio input with True Wireless Stereo (TWS) functionality, and 2 XLR balanced combo jacks for versatile audio source integration.
- Efficient Amplification: Utilizes lightweight, Class D amplification for quiet, fanless operation, while 4-band parametric EQ on the XLR channel allows for precise audio tuning.
- Intuitive Control: An Android and iOS app provides remote control capabilities, while a 2.4-inch colour LCD screen offers comprehensive DSP feature access, including ducking, system limiter, and 170ms speaker delay for precise time alignment.

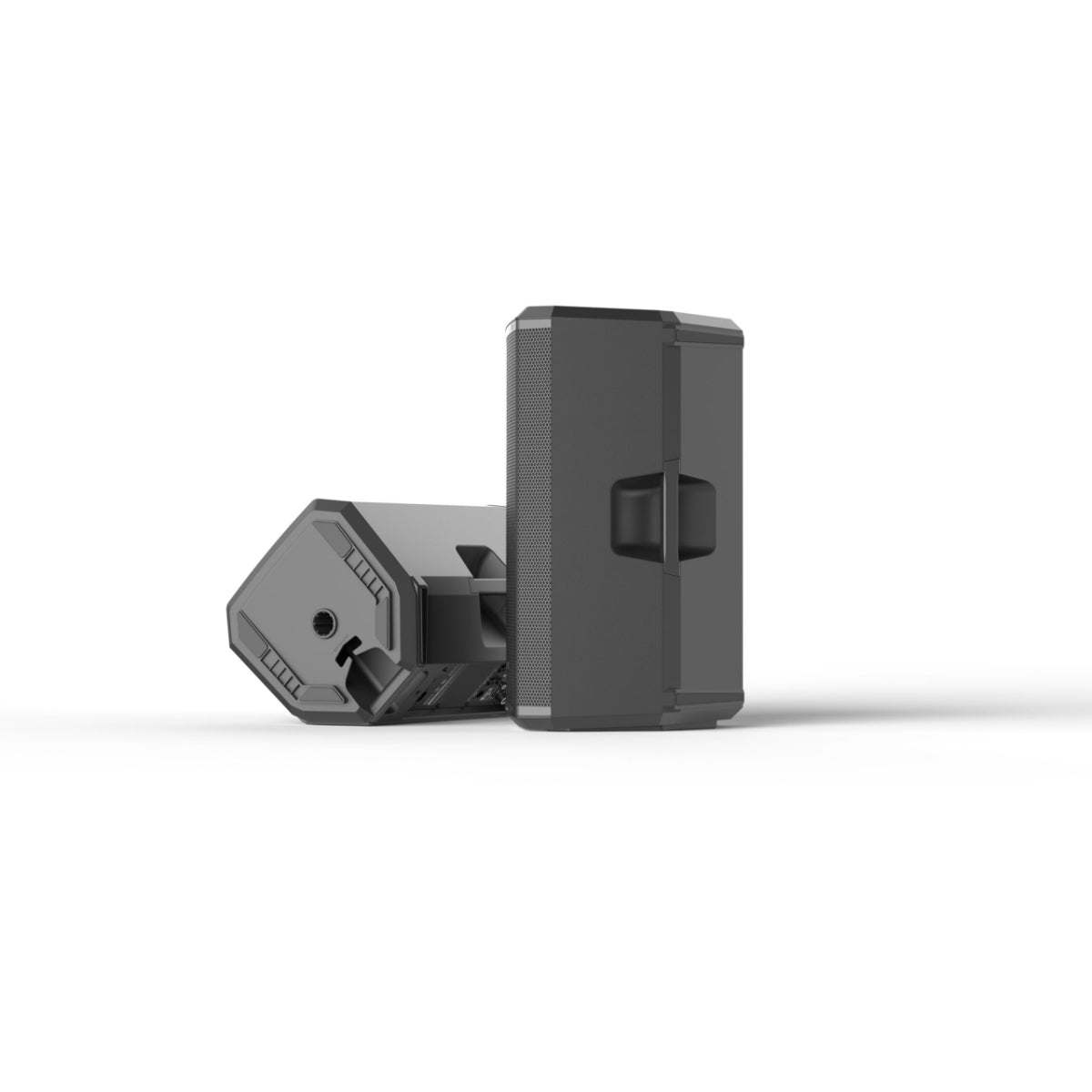

- Coverage and Mounting: Offers a 90° x 70° coverage pattern and features a 35mm pole socket along with three M10 suspension points for flexible mounting options.
The MPS12A combines advanced technology and robust build quality, providing a reliable solution for professional audio applications.
Features
- Components 1 x 12″ LF driver, 1 x 1.35″ comp driver
- SPLmax 130dB
- Dispersion 90° x 70°
- 2.4″ Colour Display
- Weight 16.9kg
Specification
| Max. SPL calculated |
130dB |
| Frequency response |
50 Hz – 20 kHz |
| Power amp output |
1000W (RMS) |
| (peak power) |
|
| Amp type |
Class D |
| Low-/mid speaker |
12” |
| HF driver |
1.35” |
| Directivity |
– |

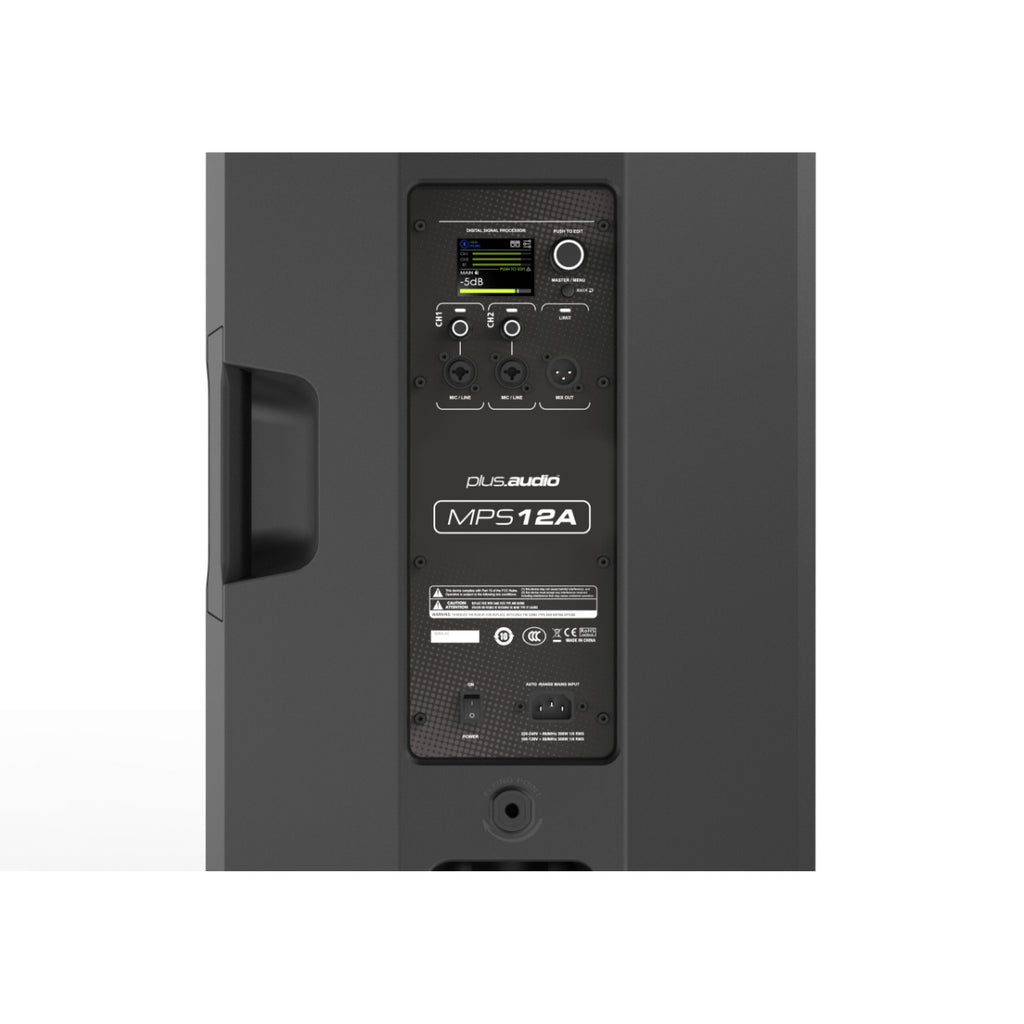

| Analog inputs |
2x XLR combo balanced, |
|
1x 3.5 mm stereo jack |
| Analog outputs |
1x XLR balanced |
| Display |
2.4″ colour display |
| DSP functions |
Master Volume, Level Metering, |
|
3-band EQ, Low-Cut |
|
Filter, Front LED, Screensaver, |
|
BT Auto Pairing, Delay, |
|
Output (mix/link) |
| Sound modes |
Live/Club/Speech |
| Setup modes |
Pole/Monitor/Bracket |
| Delay |
0 -100m |
| Output modes |
Mix out / Link Out |
| Bluetooth features |
Audio streaming and linking |
| Pole mount |
Compatible with standard |
|
35mm mounting pole |
| Rigging points |
3x M10 |
| Power consumption |
800W |
| Dimensions (WxHxD) |
62.8 x 36.9 x 35.3 cm |
| Weight |
16.9kg |
